OPTO-EDU A21.1620 0.6-5.0X 1920*1080 Stereo Optical Microscope HDMI Output Calibration Free Motorized Zoom

• Motorized 0.6x-5x Zoom Control By Mouse On HDMI Monitor
• No Need To Calibrate In All Zoom Range, Just Measure By Mouse With Pre-Setted Scale!
• Built-in High Precision Electronic Feedback System, Smart Cruise Scanning setting
• Large Size Track Stand With Coaxial Coarse & Fine Focus, With Bottom Light
• Widely Used For SMT, PCB, BGA Surface Board Assembly Industry
•
•
•
•
•
•
•

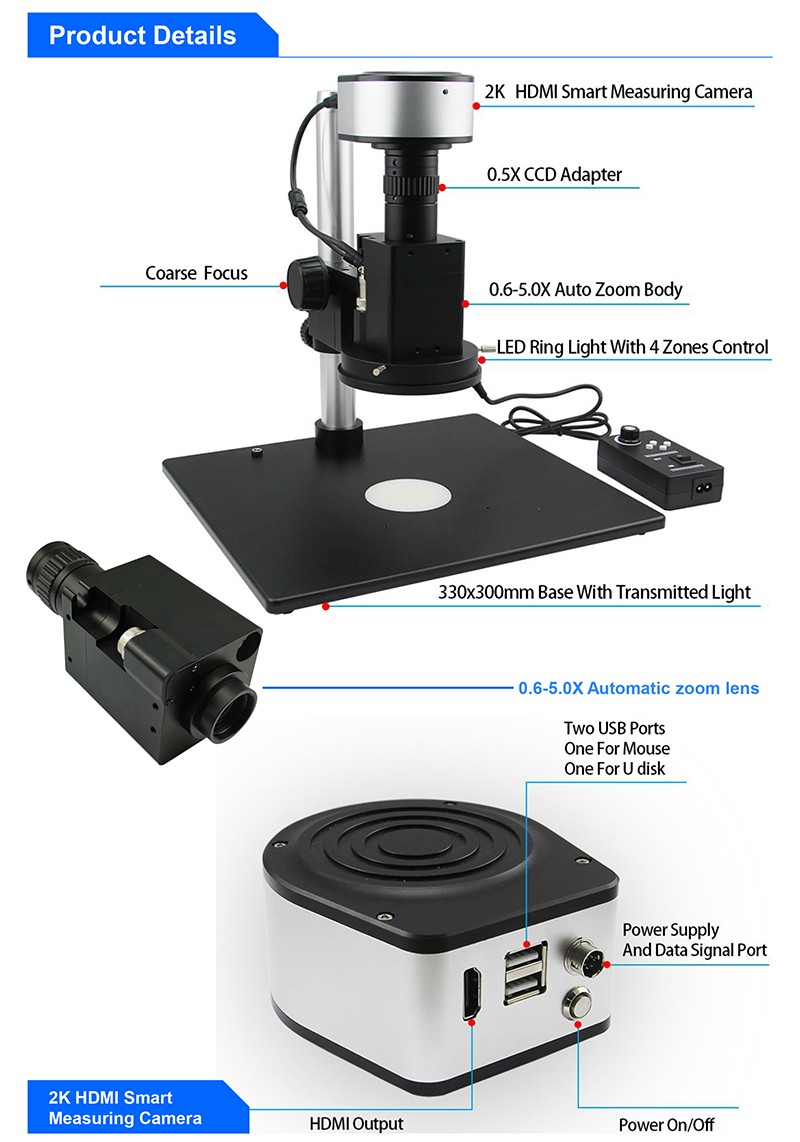

• A21.1620 Calibration Free Motorized Zoom Video Microscope
  	Standard	Optional
  Optical Magnification	0.3-2.5X (0.6-5.0X Zoom Body With 0.5X CCD Mount)	0.6-5.0X (0.6-5.0X Zoom Body With 1.0X CCD Mount)
  FOV	24x13.5-2.88x1.62mm	12x6.75-1.44x0.81mm
  Total Magnification	14-120X (Based On 15.6 Inch Monitor)	28-240X (Based On 15.6 Inch Monitor)
  Working Distance	86mm
  Resolution	1920*1080
  Frame	60fps
  Sensor	1/2”
  Pixel Size	3.75x3.75μm
  Output	High Resolution HDMI Output
  Light Source	LED Ring Light With 4 Zones Control
  Measuring Function	Support Measuring Of Point, Line, Parallel Lines, Circle, Arc, Angle, Rectangle, Polygon Etc.
  Save Function	Take Photo And Video To U Disk

•

• Magnification	Working Distance	FOV	Depth Of Field	NA	Resolution
  0.6	85.6mm	12x6.75mm	3.12mm	0.021mm	0.016
  0.8	85.6mm	9x5.06mm	2.04mm	0.025mm	0.014
  1	85.6mm	7.2x4.05mm	1.21mm	0.033mm	0.01
  2	85.6mm	3.6x2.03mm	0.38mm	0.053mm	0.006
  3	85.6mm	2.4x1.35mm	0.20mm	0.067mm	0.005
  4	85.6mm	1.8x1.01mm	0.13mm	0.079mm	0.004
  5	85.6mm	1.5x0.81mm	0.09mm	0.090mm	0.004

•
•
•
•

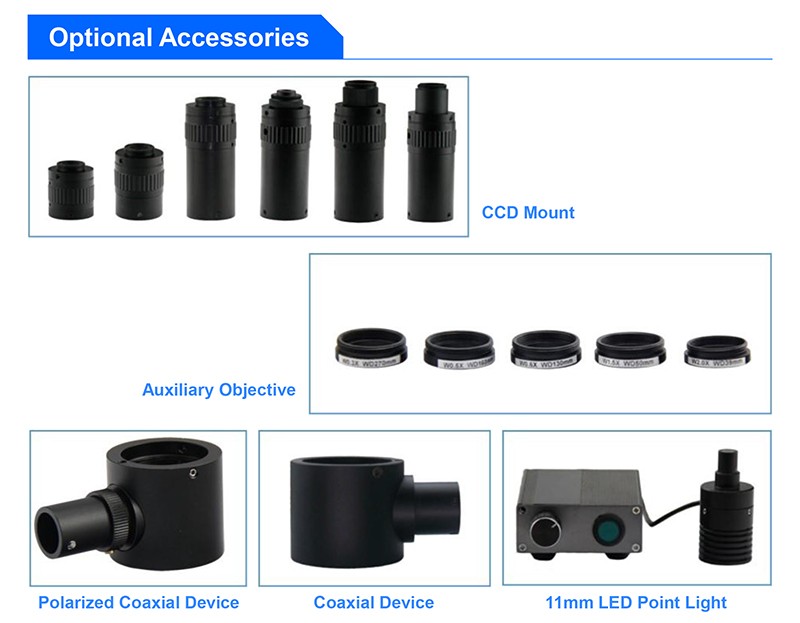

• Optional Accessories
  C-Mount	0.3X CCD Mount	Standard C-mount
  	0.45XCCD Mount	Standard C-mount
  	0.5X CCD Mount	Standard C-mount
  	0.67XCCD Mount	Standard C-mount
  	0.75X CCD Mount	Standard C-mount
  	1X CCD Mount	Standard C-mount
  	1.5X CCD Mount	Standard C-mount
  	2X CCD Mount	Standard C-mount
  	3X CCD Mount	Standard C-mount
  Auxiliary Objective	0.3X Auxiliary Objective	Use With 1X Objective, Working Distance 270mm
  	0.38X Auxiliary Objective	Use With 1X Objective, Working Distance 205mm
  	0.5X Auxiliary Objective	Use With 1X Objective, Working Distance 160mm
  	0.6X Auxiliary Objective	Use With 1X Objective, Working Distance 130mm
  	0.75X Auxiliary Objective	Use With 1X Objective, Working Distance 105mm
  	1.5X Auxiliary Objective	Use With 1X Objective, Working Distance 50mm
  	2.0X Auxiliary Objective	Use With 1X Objective, Working Distance 39mm
  Other Accessories	Coaxial Device	Use With φ11mm LED Point Light
  	Polarized Coaxial Device	Use With φ11mm LED Point Light
  	11mm LED Point Light	3W, Brightness Adjustment
