Dual Head A41.1935 Ophthalmology Operating Microscope Motor Zoom 4.5x~27.3x 14 Function Foot Switch 4'' Touch Screen

Name: Dual Head A411935 Ophthalmology Operating Microscope Motor Zoom 45x273x 14 Function Foot Switch 4 Touch Screen
Brand: CNOEC, OPTO-EDU
Price: 1 USD

Touchscreen : 14 Functions Foot Switch

Control : 14 Functions Foot Switch

Head : Dual Heads For Two People Operation, Opposite In 45°

Magnification : 4.5x~27.3x Continuous Zoom

View Field : Dia.50mm, 32mm, 20mm, 12mm, 8mm

Brand Name : CNOEC, OPTO-EDU

Model Number : A41.1935

Certification : CE,

Place of Origin : China

MOQ : 1 pc

Price : FOB $1~1000, Depend on Order Quantity

Payment Terms : T/T,West Union,Paypal

Supply Ability : 5000 pcs/ Month

Delivery Time : 5~20 Days

Packaging Details : Carton Packing, For Export Transportation

Focus : Motorized Focus, Range +/-30mm, Speed 33s/Full Distance

Assistant Obj. : F=200mm

Eyepiece : 12.5X

Illumination : 2 Coaxial LED

Main Objective : F=200mm, Optional F=175mm, 250mm, 300mm, 350mm, 400mm, 450mm

Contact Now

Dual Head A41.1935 Ophthalmology Operating Microscope Motor Zoom 4.5x~27.3x 14 Function Foot Switch 4'' Touch Screen

● LED lamps exchangeable

● Macular protector can protect Retina

● Depth regulator to increase field depth of field of view

● Magnetic brakes

● Main binocular tube and assistant tube use independent optical system , the same luminance , the same magnification, motorized continuous change 4-27 times

● 0°~200°Variable angle binocular tube, Alleviating long-term fatigue

Size	13850170mm
Weight	0.5kg
Storage And Operating Conditions	Temperature:+10℃ To +40℃
Sterility	Sterilize Before Use
Materials	Surgical Grade Materials
Condenser Lens Assembly	Manual
Lens Positioning Unit	Rotational Assembly
Lenses	130°
Lenses	90°
Mounting Kits	Zeiss
	Leica
	Topcon
	Takagi
	CORDER

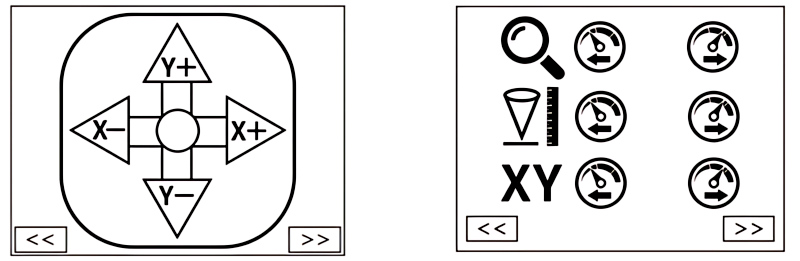

Zoom adjustment/ Focus adjustment brightness adjustment / Pitch angle display

X-Y translational adjustment

Zoom speed adjustment /focusing speed adjustment/X-Y translation speed adjustment

Filter switching touch control

User Information Call and Save Interface

Foot pedal 14 function customization setting interface

A41.1930, A41.1931, A41.1934, A41.1935, A41.1936 Surgical Operation Microscope

A41.1930 Operating Microscope is a basic Operation Microscope with 3 steps magnification.

A41.1931 is a very practical version , with 6 functions foot switch to control motorized X/Y move, Z focus and 5 steps magnification.

A41.1934 comes fitted with a integrated camera and an individual LED light source to deliver well-lit imaging at all times.

A41.1935 is our flagship model, upgraded with three electromagnetic lock assemblies, continuously variable zoom main lens and a integrated camera, 4-inch screen, 3 sets of electromagnetic locks

A41.1936 is the highest model in this series, with motorized zoom 4.5x~27.3x objective, dual Xenon light 100000 lux, 12 functions foot switch to control motorized X/Y move, Z focus & Zoom,4K camera integrated BIOM system, 4 sets of electromagnetic locks

All 5 models can upgrade with optional beam splitter, SLR camera adapter, phone holder, CCD adapter for digital camera, for sharing real time image to LCD monitor, mobile phone or computer.

Features:

—Dual Head 45° Opposite, With Red Reflection & Macular Protector, For Ophthalmology

—Eyepiece 12.5x, 3 Steps Manual Zoom 6x10x16x, 5 Steps Manual Zoom 4x 6x10x16x 24x, or Continuous Zoom 4.5x~27.3x

—Objective F=200mm, 2nd Objective F=125mm, LED, Max Brightness 60000 Lux to 100000 Lux

—2 Functions, 12 Functions, 14 Functions Foot Switch, Control X/Y Movie, Z Focus, Zoom

—Four Wheels Stand Swing Angle of Carry Arm 0~300°, Height From Objective to Floor 800mm

	A41.1930	A41.1931	A41.1934	A41.1935	A41.1936
Main Usage	——	With Red Reflection & Macular Protector, For Ophthalmology
Eyepiece	WF12.5x
Head	Single Head	Dual Heads For Two People Operation, Opposite In 45°
Head	Interpupillary Distance 55~75mm, Eyetube Diopter Adjustable ±6D
Main Head	Inclined 45°,Optionl 0~200°	Inclined 0~200°	Inclined 0~200°	Inclined 0~200°	Inclined 0~200°
Magnification	3 Steps 6x,10x,16x	5 Steps 4x,6x,10x,16x,24x	4.5x~27.3x Continuous Zoom
View Field	Dia.41.77mm, 25.06mm, 15.66mm	Dia.50mm, 32mm, 20mm, 12mm, 8mm	Dia.44~7.7mm	Dia.45~7.5mm	Dia.49.4~8.2mm
Zoom Body	——	——	1:6 Motorized Continuous Zoom, Parallel Light System
Assistant Head	——	180° Rotatable
Magnification	——	3 Steps 6x, 10x, 16x	5 Steps 4x,6x,10x,16x,24x	5 Steps 4x,6x,10x,16x,24x	5 Steps 4x,6x,10x,16x,24x
View Field	——	Dia.34mm, 20mm, 13mm	Dia.50mm, 32mm, 20mm, 12mm, 8mm	Dia.50mm, 32mm, 20mm, 12mm, 8mm	Dia.50mm, 32mm, 20mm, 12mm, 8mm
Main Objective	F=200mm, Optional F=175mm, 250mm, 300mm, 350mm, 400mm, 450mm
Assistant Obj.	F=200mm
Focus	Motorized Focus, Range +/15mm, Speed 33s/Full Distance	Motorized Focus, Range +/-25mm, Speed 33s/Full Distance	Motorized Focus, Range +/-30mm, Speed 33s/Full Distance	Motorized Focus, Range +/-30mm, Speed 33s/Full Distance	Motorized Focus, Range +/-40mm, Speed 33s/Full Distance
EM Lock	——	——	——	3 Sets	4 Sets
Touchscreen	——	——	4'' Touchscreen	4'' Touchscreen	7'' Touchscreen
Control	2 Functions Foot Switch	2 Functions Foot Switch	14 Functions Foot Switch	14 Functions Foot Switch	12 Functions Foot Switch
Control	Control Z Focus	Control Z Focus	Control X/Y Move, Z Focus, Zoom	Control X/Y Move, Z Focus, Zoom	Control X/Y/Z Move, Z Focus, Zoom
Stand	Four Wheels Moving Stand
	Max Extended Length 1100mm	Max Extended Length 1100mm	Max Extended Length 1200mm	Max Extended Length 1508mm	Max Extended Length 1815mm
	Max Rotatable Swing Angle of Arm 0~300°
	Distance Between Objective And Ground Surface 800mm~1250mm	Distance Between Objective And Ground Surface 800mm~1250mm	Distance Between Objective And Ground Surface 800mm~1250mm	Distance Between Objective And Ground Surface 813mm~1573mm	Distance Between Objective And Ground Surface 690mm~1452mm
Illumination	1 Coaxial LED	1 Coaxial LED	2 Coaxial LED	2 Coaxial LED	2 Coaxial 180W Xenon
Illumination	Light Spot Dia.70mm, Intensity 60000 Lux	Light Spot Dia.50mm, Intensity 60000 Lux	Light Spot Dia.50mm, Intensity 60000 Lux	Light Spot Dia.50mm, Intensity 70000 Lux	Light Spot Dia.50mm, Intensity 100000 Lux
Red Reflection	Non-adjustable	Adjustable ±2°	Adjustable ±2°	Adjustable ±2°	Adjustable ±2°
Filter	Heat Absorber	Heat Absorber	Heat Absorber	Heat Absorber	Heat Absorber
	Macular Protection	Macular Protection	Macular Protection	Macular Protection	Macular Protection
	Green Filter	Green Filter	Green Filter	Green Filter	Green Filter
		Blue Filter	Blue Filter	Blue Filter	Blue Filter
	——	——	Yellow Filter	Yellow Filter	Yellow Filter
	——	——	Gray Filter	Gray Filter	Gray Filter
	Optional Cobalt Blue Filter	Optional Cobalt Blue Filter	Optional Cobalt Blue Filter	Optional Cobalt Blue Filter	Optional Cobalt Blue Filter
BIOM	Optional Integrated/External	Optional Integrated/External	Optional Integrated/External	Optional Integrated/External	Standard Integrated
Packing	2 Cartons Total G.W 104Kg, Volume 0.3CBM	3 Cartons Total G.W 104Kg, Volume 0.35CBM	4 Cartons Total G.W 165 Kg Volume 1.2CBM	1 Carton Total G.W 350 Kg Volume 2.7CBM	1 Carton Total G.W 401 Kg Volume 2.7CBM
