| Item. | A12.2233 Laboratory Microscope Specification | Model.No | A12.2233 |
| Optical System | Infinity Plan Mutual Achromatic Optical System, Confocal: 45mm | | |
| Focusing System | Focusing Range: 16mm,Coaxial Coarse And Fine Focusing System With Safety Stop Lock Ring & Tension Adjustable, Fine Scale: 2μm | | |
| Head | Seidentopf Trinocular 30°Head, Light Split:(50/50), Interpupillary:48-76mm, Dia.23.2mm；FN=22 | A53.2201-C33T | ● |
| Eyepiece | Wide Field Diopter Adjustable: -5~+5°,10X/FN=22mm,With Eyecup | A51.2201-1022 | ● |

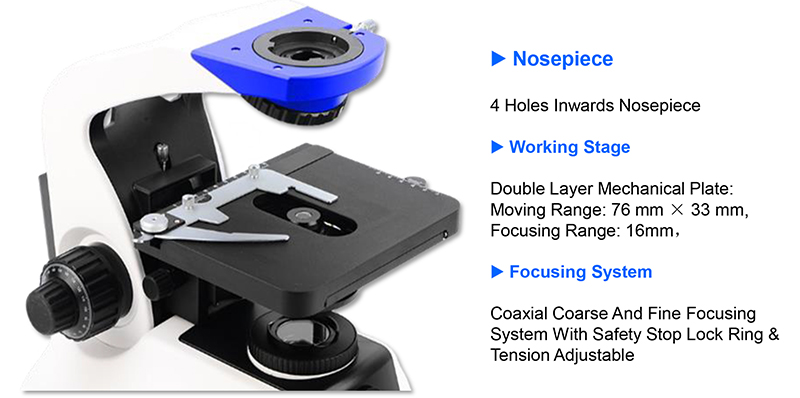

| Nosepiece | 4 Holes Inwards Nosepiece | | ● |
| Objective | Infinity Plan Achromatic Biological Objective: 4x,10x,40x,100x | A51.2201 | ● |
| Infinity Semi-APO Biological Objective: 4x,10x,20x,40x,100x | | ○ |
| Infinity Plan Achromatic Metallurgical Objective: 5x,10x,20x,50x,100x | | ○ |
| Infinity Plan Semi-APO Metallurgical Objective: 5x,10x,20x,50x,100x | | ○ |
| Working Stage | Double Layer Mechanical Plate, Moving Range: 76 mm × 33 mm | | ● |
| Condenser | Kohler Condenser With Center Adjustable Diaphragm ,N.A=0.1~1.1,Polarizing & Brightness Attachment Supported | | ● |
| Illumination System | Built-in White LED Illuminator, Lamp Life Time≥ 30,000 Hours,6500K Color Temperature | | ● |
| Reflect Illumination | | |
| Reflect Metallurgical Illuminator,LED White Light,Brightness Field Reflector,With Polarizing Slot | | ○ |
| Reflect Fluorescent Illuminator,LED Fluorescent,Surpports DAPI/FITC/TxRED (Single Color, Double Color And Triple Color) | | ○ |
| Transmit Illumination | | |
| Built-in Transmit Illumination System | | ● |
| Video Adapter | 0.5X C-Mount,For 1/2”~ 1/1.8”Sensor | | ● |
| Camera | 16 Million Pixel CMOS Camera,7' LCD Screen, Wi-fi,HDMI,USB Output Supported | | ● |
